P5121

The LT-P5000 series industrial PanePC is a powerful and high-performance industrial all-in-one machine product. This Industrial Panel PC series adopts a modular design and provides a variety of sizes from 10.4 inches to 32 inches. It supports square screen and widescreen display to meet the needs of different industries and applications.

PRODUCTS FEATURES

Touch type/Resolution Capacitive or Resisitive touch/1024*768

CPU Intel Celeron and Core J1900/J6412 /4/6/7/8/10th-i3/i5/i7

Memory DDR3/DDR4/DDR5（Check Specification for details）

Storage Msata, M.2 Nvme, Sata(Check Specification for details）

Interfaces 2*LAN, 4*USB, 2*COM, 1*HDMI+1*VGA

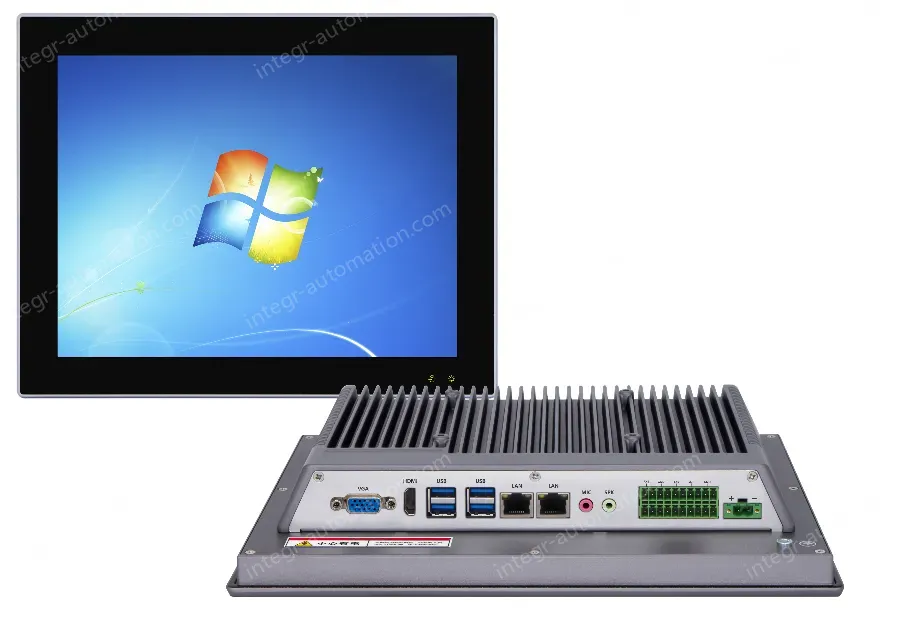

12.1 inch Industrial Panel PC

1. Support WINDOWS/LINUX operating system.
2. 10-point capacitive touch or 5-wire resistive touch optional.
3. Onboard Intel Celeron™ supports 3rd-12th generation processors.
4. Screens are available in 10.4, 12.1, 13.3, 15, 15.6, 17, 17.3, 18.5, 19, 21.5, 23.8, 27, 32 inches

Specification:

1.1 Mother Board Specification：

Model	LT-P5121
CPU	J1900
Memory*	1*DDR III RAM Slot, Up to 8GB
Storage*	1MSATA SSD 1SATA SSD
Display	1HDMI: Resolution up to 19201200@60Hz 1VGA: Resolution up to 19201200@60Hz
Expansion*	1*Mini PCIE slots for 4G and WIFI module
Ethernet	2*RTL8211F LAN Chip (10 / 100 / 1000 Mbps, RJ-45 type)
USB*	1USB 3.0 (Type-A) 3USB 2.0 (Type-A)
COM	1RS-232 (DB9 type) 1RS-485 / 232 (DB9 type) (Support optional 6*COM ports, Phoenix terminal type)
Audio	1MIC+1SPK

1-2.Mother Board Specification：

Model	QY-P5121
CPU	i3-4010U / i5-4260U / i7-4650U
Memory*	2*DDR III RAM Slots, Up to 16GB
Storage*	1MSATA SSD 1SATA SSD
Display	1HDMI: Resolution up to 19201200@60Hz 1VGA: Resolution up to 19201200@60Hz
Expansion*	2*Mini PCIE slots for 4G and WIFI module
Ethernet	2*RTL8211F LAN Chip (10 / 100 / 1000 Mbps, RJ-45 type)
USB*	4*USB 3.0 (Type-A)
COM	1RS-232 (DB9 type) 1RS-485 / 232 (DB9 type) (Support optional 6*COM ports, Phoenix terminal type)
Audio	1MIC+1SPK

1-3.Mother Board Specification：

Model	QY-P5121
CPU	J6412
Memory*	2*DDR IIII RAM Slots, Up to 32GB
Storage*	1MSATA SSD 1SATA SSD
Display	1HDMI: Resolution up to 19201200@60Hz 1VGA: Resolution up to 19201200@60Hz
Expansion*	2*Mini PCIE slots for 4G and WIFI module
Ethernet	2*RTL8211F LAN Chip (10 / 100 / 1000 Mbps, RJ-45 type)
USB*	4*USB 3.0 (Type-A)
COM	1RS-232 (DB9 type) 1RS-485 / 232 (DB9 type) (Support optional 6*COM ports, Phoenix terminal type)
Audio	1MIC+1SPK

1-4.Mother Board Specification：

Model	QY-P5121
CPU	i3: 7100U / 8130U / 10110U i5: 7200U / 8250U / 10210U i7: 7500U / 8650U / 10610U
Memory*	2*DDR IIII RAM Slots, Up to 64GB[1]
Storage*	1M.2 NVME SSD 1SATA SSD
Display	1HDMI: Resolution up to 19201200@60Hz 1VGA: Resolution up to 19201200@60Hz
Expansion*	1Mini PCIE slot for WIFI module 1M.2 Slot for 4G/5G module
Ethernet	2*RTL8211F LAN Chip (10 / 100 / 1000 Mbps, RJ-45 type)
USB*	4*USB 3.0 (Type-A)
COM	1RS-232 (DB9 type) 1RS-485 / 232 (DB9 type) (Support optional 6*COM ports, Phoenix terminal type)
Audio	1MIC+1SPK

Notes:
[1]: The maximum memory capacity and the maximum capacity per strip supported by this motherboard depend on the CPU.

2.Screen Specification：

Screen Size	12.1 inch TFT LED Screen, 4:3 Size
Resolution	1024*768
Brightness	350nits
	Support optional 500 / 800 / 1000 nits
Contrast	800:1
Largest Colorful	16M
Touch Screen Type	Capacitive	Resistive
Light Transmittance	More than 95%	More than 95%
Touch Life	50 million times	35 million times
Response Time	＜5ms	＜5ms
Touch Hardness	6 Mohs

3.Device Specification：

BIOS	AMI UEFI BIOS
Power Input	1. DC 12V (Support optional DC 9-36V wide voltage power input) 2. Support AT / ATX 3. 1*2.5mm circle type DC plug
Working Temperature	-10℃~60℃, Support 24/7 Working

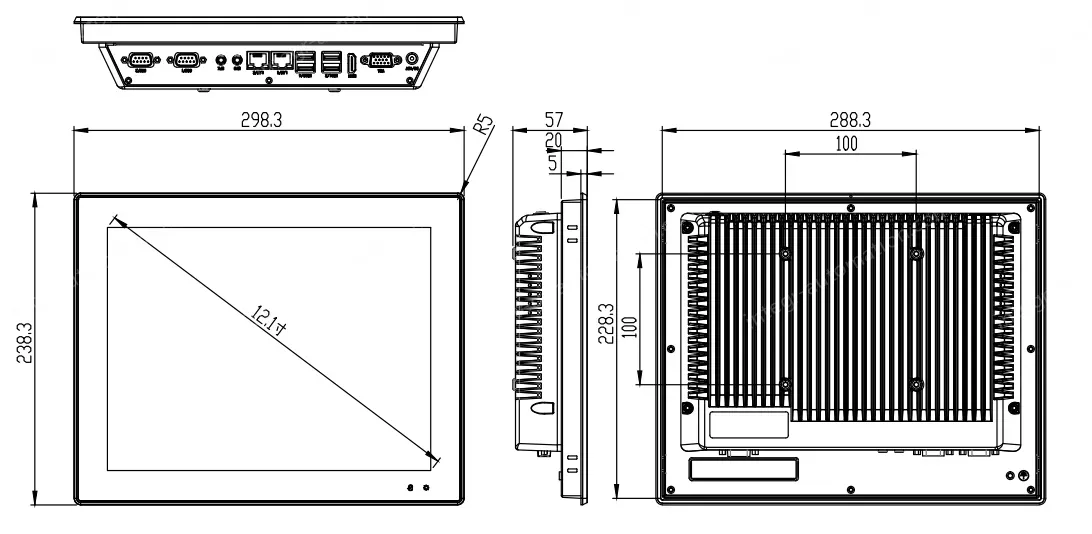

Size	298.3mm238.3mm57mm
Structure	Fully Enclosed Aluminum Alloy Material
Heat dissipation	Fanless Design, Conduction Heat Dissipation
Installation	Desktop / Embedded / Wall-Mounted
System	Windows XP / 7 / 10 / 11 and Linux

4.Wide Voltage Input and 6*COM ports Version：

Display	1HDMI 1VGA
Ethernet	2*RJ-45
USB	4*USB
COM	5RS-232+1RS-232 / 485
Audio	1MIC+1SPK
Power Input	DC 9-36V
Power Input	2*Pin Phoenix terminal ports

5.Ordering Information：

Model	CPU	LAN	USB	COM	Display	RAM	SSD	Expansion	Power
P5121-1	J1900	2	4	2	1HDMI 1VGA	1*DDR 3	1MSATA 1SATA	1*Mini PCIE	DC 12V
	4th					2*DDR 3		2*Mini PCIE
	J6412					2*DDR 4		2*Mini PCIE
	7th/8th 10th					2*DDR 4	1M.2 NVME 1SATA	1Mini PCIE 1M.2
P5121-2	3th		2			1*DDR 3	1MSATA 1SATA	1*Mini PCIE
P5121-2	N100		2			1*DDR 4	1M.2 NVME 1SATA	2*M.2
P5121-3	11th/12th		4		2*HDMI	1*DDR 4	1M.2 NVME 1SATA	2*Mini PCIE
