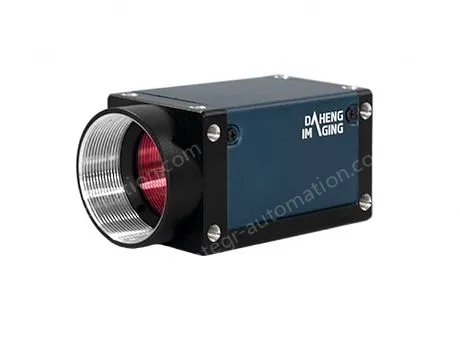

      MER3-506-58G3C-P
      The MER3-506-58G3C-P camera adopts the Sony Pregius S back-illuminated CMOS sensor with global exposure, which transmits image data through the GigE data interface, with a transmission speed of up to 2.5Gbit/s, supports Power over Ethernet, and integrates I/O (GPIO) interface, provides a cable locking device, can work stably in various harsh environments, and the camera is equipped with screw mounting holes on all sides. It can be flexibly installed in different structures, and is a high-reliability industrial digital camera product.
      MER3-506-58G3C-P
      The sequence control function supports the configuration of multiple sets of function parameters

      Two trigger types: Frame Start / Frame Burst Start

      Two exposure modes: Standard Exposure Mode / Minimal Exposure Mode

      Gamma, pixel sampling, digital shift, black level

      Lookup table, parameter group, counter, and timer functions

      Burst acquisition and level-controlled exposure functions are supported

      Ambient light presets, color conversion, and saturation functions are supported

      Remove the parameter range limit, and you can expand the range values of parameters such as exposure, gain, white balance, etc

      A 16KB user data area is provided to save algorithm coefficients, parameter configurations, etc
      MER3-506-58G3C-P

      Model

      MER3-506-58G3C-P

      Brand

      Daheng image

      Resolution

      2448×2048

      Frame rate (fps)

      58.60

      Sensor manufacturers

      Sony

      Sensor

      1/1.8" IMX547 Global shutter CMOS

      Cell size

      2.74μm

      Pixel depth

      8 bit，12 bit

      Data interface

      2.5gige

      Lens mount

      C

      Spectrum

      Colored

      Image data format

      Bayer RG8，Bayer RG12，RGB8，BGR8，Mono8

      Signal-to-noise ratio

      39.85 db

      Exposure time

      Standard: 3μs ~ 20μs, actual step size: 1μs; 21μs ~ 1s, actual step size: 1 line cycle; Minimum: 1 ~ 2.4μs, actual step: 0.1μs

      Gain

      0db ~ 16db

      Binning

      Not supported

      Pixel sampling

      Sensor：1×1，2×2

      Mirror flip

      Horizontal mirroring, vertical mirroring

      I/O interface

      1 opto-decoupled isolated input, 2 bidirectional gpios

      Rated power

      < 5.5 W @ 12V / poe

      Power supply requirements

      12 ~ 24 VDC or poe

      Operating temperature

      0°C ~ +50°C

      Storage temperature

      -20°C ~ +70°C

      Operating humidity

      10% ~ 80%

      Mechanical Dimensions (W×H×L)

      29 mm × 29 mm × 50.6 mm

      Weight

      69 g

      Certifications & Standards

      CE，rohs，genicam，gige Vision

      ">
