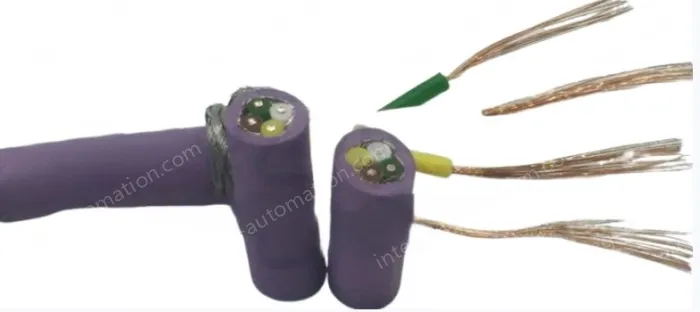

Inner conductor diameter Bare copper (AWG24/19)
Core insulation PE
Core color White, brown, green, yellow
Stranding elements Star quad
Wrap Polyester film on stranded bundle
Shield 1 None
Full shield Tinned copper braid
Sheath material PUR
Cable outer diameter approx. 6.5mm ± 0.3
Sheath color Purple, similar to RAL4001
Electrical Characteristics
Characteristic impedance 120ohm±10%
Mutual capacitance 50nf/km nominal
Test voltage 1.5KV
Technical Data
Weight approx. 45kg/km
Bending radius, many times 95mm
Operating temperature range -30℃
Operating temperature range +70℃
Applications
CAN bus cables for guided movement in cable drag chains. 2 pairs of wire pairs star four-wire group, i.e. 4-wire group in the diagonal position of the two core wires constitute a two-wire loop, and meet the requirements of the CAN standard.
CAN cables, highly flexible drag chain applications
