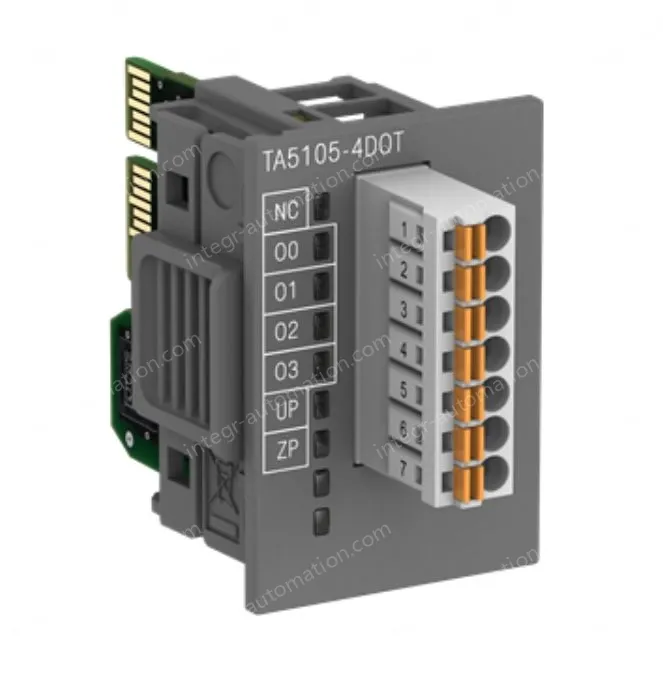

Number of output points: 4 digital output points1.

Output type: Usually transistor output, can be switched on and off quickly, suitable for applications that require high-frequency output.

Output Voltage: The operating voltage range is generally 12V to 220V1.

Output current: The output current of each output point can generally reach about 0.5A, which can directly drive small loads, such as relays, indicator lights, etc.

Bus interface: The I/O bus interface of the AC500 series ensures high-speed and stable data transmission and communication with the main controller.

The electrical isolation technology is used between the output channel and the internal circuit, and the isolation voltage can generally reach 1500V AC, which effectively prevents the influence of external interference signals on the internal circuit of the module and improves the stability and reliability of the system.

Operating Temperature: Typically works in the range of -25°C to +60°C.

Relative humidity: Generally within the range of 5% to 95% relative humidity, but condensation is not allowed.

Degree of protection: Generally IP20, it can meet the protection requirements of most industrial sites, but additional protection measures may be required in harsh environments.

It has an output status indicator, which can intuitively display the current status of each output point, which is convenient for on-site debugging and troubleshooting.

It supports online diagnosis function, which can monitor the working status of the output channel in real time, and timely find and report fault conditions such as abnormal output signals, short circuits, and open circuits.

The module is designed for ABB AC500 series PLCs and has good compatibility with other modules and master controllers of the AC500 series, making it easy to form a complete automation control system.
